CDBC3- LED Freezer Light
※ Features
1. Special end cap and wire connection design makes the lamps can be easily connected in series.
2. Use lens design to concentrate the LED beam angle, improve the light efficiency utilization.
3. Lamp is small and light, back with double-side tape , easy to install and disassemble.
4. Lamp body integrally molded, better waterproof and dustproof effect.
5. Working life time>50000hrs, energy-saving 80%.
6. Apply to Beverage cooler and Vending machines etc. small cooler.
※ Specification
|
Code |
Item no. |
Measurement |
Voltage（V） |
Power (W) |
LED |
CCT（K） |
FLUX（LM) |
IP |
Energy level |
CRI |
Package |
|
1 |
CDBC3 （can be connected in series） |
300*14.5*12.5mm |
DC12V |
1W |
LED SMD 2835 12PCS |
4000-6500K |
60 |
65 |
A++ |
≥80 |
Neutral packing |
|
2 |
600*14.5*12.5mm |
DC12V |
1.5W |
LED SMD 2835 18PCS |
4000-6500K |
90 |
65 |
A++ |
≥80 |
Neutral packing |
|
|
3 |
1200*14.5*12.5mm |
DC12V |
3W |
LED SMD 2835 36PCS |
4000-6500K |
160 |
65 |
A++ |
≥80 |
Neutral packing |

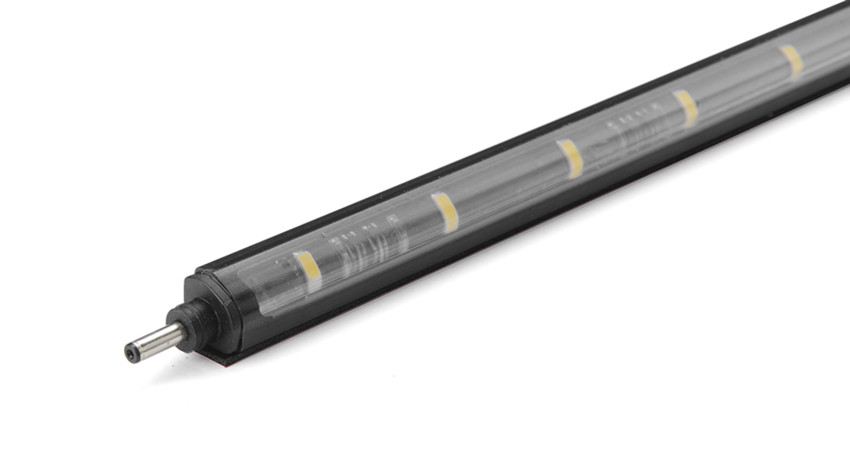

※ Detailed photo
※ Application:

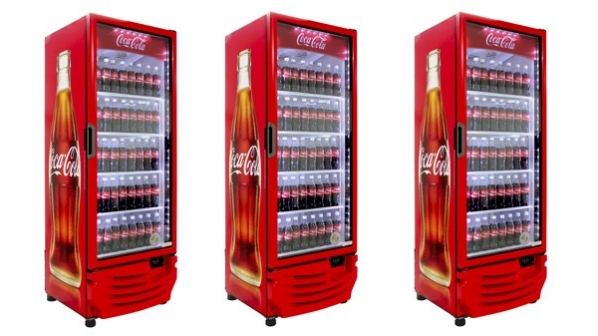

Apply to beverage coolers, visi cooler and vending machine lightings.
