DALI Driver with Panel light
DALI dimming system product including the DALI dimming driver and the light.

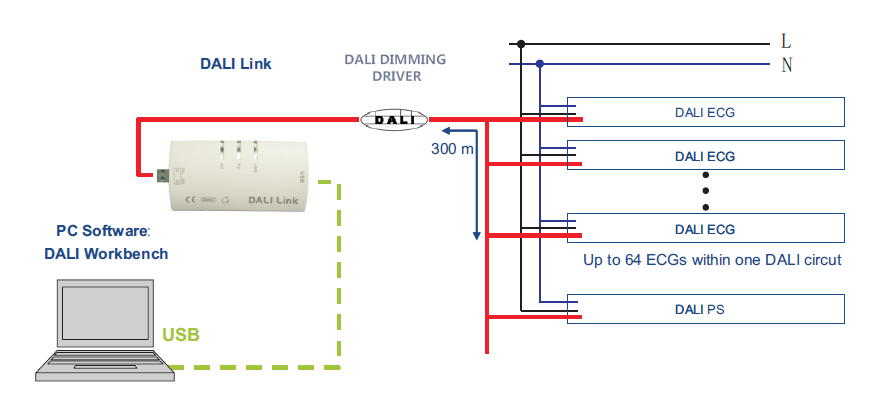

DALI(Digital Addressable Lighting Interface) is an international standard, popular bus lighting control protocol, which uses Manchesterencoding of digital transmission with overall, group, individual dimming, inquiries state and other powerful lighting dimming function. DALI system is a modern lighting system which is simple, flexible and cost-effective and controll the entire lighting system without complicated wiring. Our products can be used in conjunction with all kinds of DALI control system under the standard IEC60929.
※ Feature
1. Under the standard IEC60929 and can be used in conjunction with all kinds of DALIcontrol system.
2. Can control 64 lamps and set up 16 different scenes in the same time , each lamp lighting can be dimmed from 100 to 0.
3. 1 channel, 2channels, 3channels and 4channels are available.
4. Energy saving 55% more comparing to normal LED lighting products.
5. Providing perfect building intelligent lighting solution.
※ Specification and technique parameter
CW/WW PANEL LIGHT
| TYPE | ITEM | LED TYPE | LED QTY | CURRENT | VOLTAGE | MAX. POWER | CRI | DIMENSION | ADAPTIVE DALI DRIVER | Energy level | PACKAGE |
| WW/CW PANEL LIGHT(2 CHANNELS) | CDTH1-S8C2 | 2835 | CW:240 WW:240 | 2400mA | CW:12V WW:12V | 60W | ≥80 | 600*600*12.5mm | CDDLV1224C2A3A | A+ | Neutral packing |
| WW/CW PANEL LIGHT(2 CHANNELS) | CDTH1-S6C2 | 2835 | CW:120 WW:120 | 1200mA | CW:12V WW:12V | 30W | ≥80 | 300*600*12.5mm | CDDLV1224C2A3A | A+ | Neutral packing |
※ Application
1. Office and home intelligent lighting.
2. Building, Shop, Centre mall intelligent lighting.
