CDBP1- LED Freezer Light
※ Features
1. PVC cover with internal teeth to avoid the light spot problem for the common transparent plane PVC cover.
2. Lamp is small and light, back with double-side tape , easy to install and disassemble.
3. Working life time>50000hrs, energy-saving 80%.
4. Apply to Beverage cooler and Vending machines etc. small cooler.
※ Specification
Code |
Item no. |
Measurement |
Voltage(V) |
Power (W) |
LED |
CCT(K) |
FLUX(LM) |
IP |
Energy level |
CRI |
Package |
1 |
CDBP1 |
300*15.6*10mm |
DC12V |
1W |
LED SMD 2835 12PCS |
4000-6500K |
60 |
65 |
A++ |
≥80 |
Neutral packing |
2 |
600*15.6*10mm |
DC12V |
1.5W |
LED SMD 2835 18PCS |
4000-6500K |
90 |
65 |
A++ |
≥80 |
Neutral packing |
|
3 |
1200*15.6*10mm |
DC12V |
3W |
LED SMD 2835 36PCS |
4000-6500K |
160 |
65 |
A++ |
≥80 |
Neutral packing |

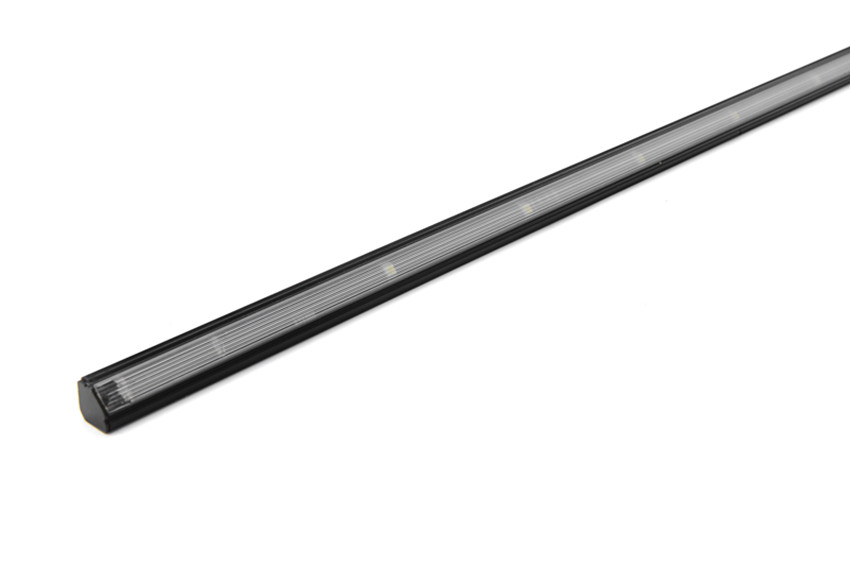

※ Detailed photo

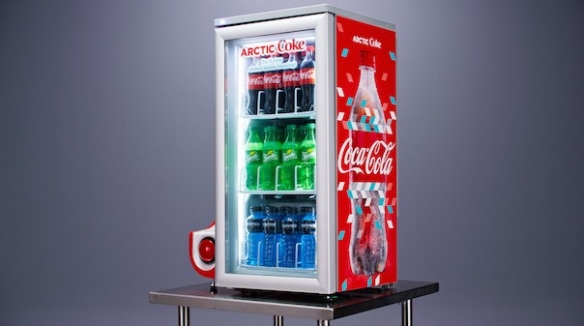

※ Application:
Apply to beverage coolers,visi coolers, vending machine lightings.
