CDBC2- LED Freezer Light
※ Features
1.Use lens design to concentrate the lighting beam angle,improve the light efficiency utilization.
2. plastic body, two installation ways, easy for installation and assembly.
3. Lamp body integrally molded, better waterproof and dustproof effect.
4. Working life time>50000hrs, energy-saving 80%.
5. With competitive price and apply to commercial walk-in freezer.
※ Specification
|
Code |
Item no. |
Measurement |
Voltage（V） |
Power (W) |
LED |
CCT（K） |
FLUX（LM) |
IP |
Energy level |
CRI |
Package |
|
1 |
CDBC2-R/L |
1200*24.5*19.6mm |
DC24V |
10W |
LED SMD 2835 48PCS |
4000-6500K |
750 |
65 |
A+ |
≥80 |
Neutral packing |
|
2 |
1350*24.5*19.6mm |
DC24V |
11W |
LED SMD 2835 54PCS |
4000-6500K |
850 |
65 |
A+ |
≥80 |
Neutral packing | |
|
3 |
1500*24.5*19.6mm |
DC24V |
13W |
LED SMD 2835 66PCS |
4000-6500K |
980 |
65 |
A+ |
≥80 |
Neutral packing | |
|
4 |
1700*24.5*19.6mm |
DC24V |
15W |
LED SMD 2835 72PCS |
4000-6500K |
1150 |
65 |
A+ |
≥80 |
Neutral packing | |
|
5 |
CDBC2-M |
1200*48.2*19.6mm |
DC24V |
20W |
LED SMD 2835 96PCS |
4000-6500K |
1500 |
65 |
A+ |
≥80 |
Neutral packing |
|
6 |
1350*48.2*19.6mm |
DC24V |
22W |
LED SMD 2835 108PCS |
4000-6500K |
1700 |
65 |
A+ |
≥80 |
Neutral packing | |
|
7 |
1500*48.2*19.6mm |
DC24V |
26W |
LED SMD 2835 132PCS |
4000-6500K |
1950 |
65 |
A+ |
≥80 |
Neutral packing | |
|
8 |
1700*48.2*19.6mm |
DC24V |
30W |
LED SMD 2835 144PCS |
4000-6500K |
2300 |
65 |
A+ |
≥80 |
Neutral packing |

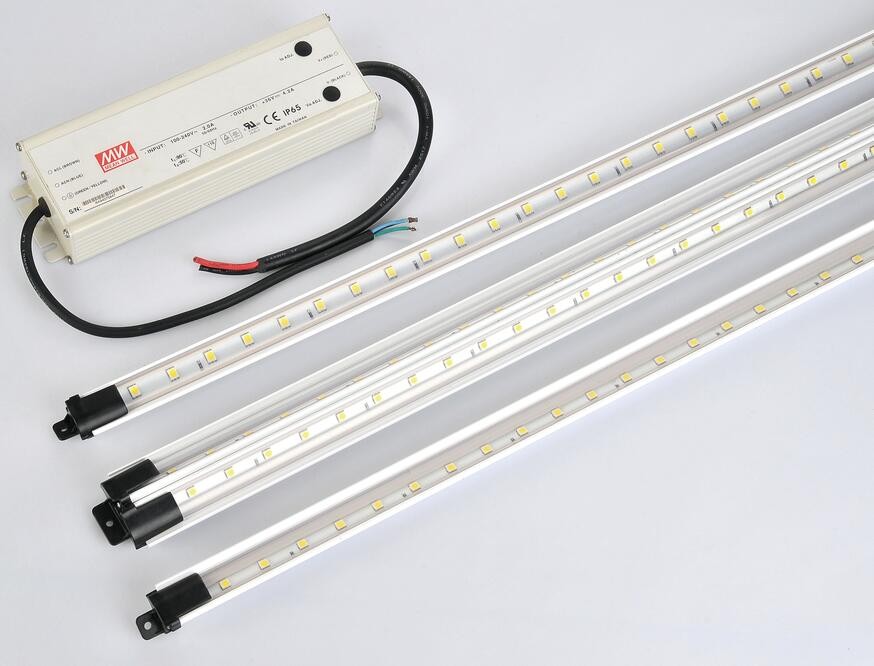

※ Detailed photos
※ Application:

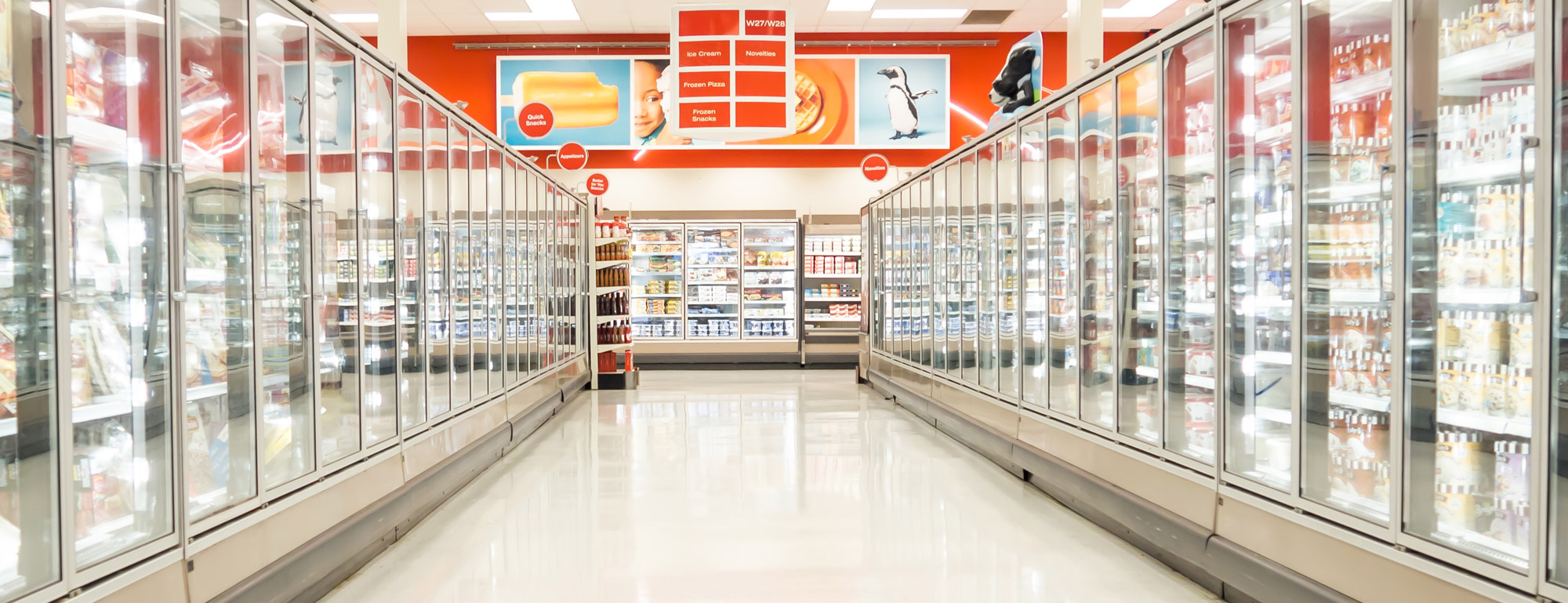

Apply to walk in freezer, walk in cooler and supermarket refrigerated displays.
