CDBD3-LED Freezer Light
※ Features
1. Use CREE high power LED, with stable function and over 50000hrs working lifetime.
2. Comes with constant power supply which can connect with the high voltage directly , more convenient usage.
3. Use of optical lens, Lighting energy ultilization rate up to 93%. with perfect lighting effect.
4. Elegant design, suitable for high-grade large commercial walk-in freezer needs.
※ Specification
|
Code |
Item no. |
Measurement |
Voltage（V） |
Power (W) |
LED |
CCT（K） |
FLUX（LM) |
IP |
Energy level |
CRI |
Package |
|
1 |
CDBD3-R/L (include 1pc driver) |
1095*32*25mm |
0-25V700mA |
18W |
High power LED 3W white 6PCS |
4000-6500K |
900 |
65 |
A+ |
≥80 |
Neutral packing |
|
2 |
1280*32*25mm |
0-30V700mA |
21W |
High power LED 3W white 7PCS |
4000-6500K |
1050 |
65 |
A+ |
≥80 |
Neutral packing | |
|
3 |
1465*32*25mm |
0-35V700mA |
24W |
High power LED 3W white 8PCS |
4000-6500K |
1200 |
65 |
A+ |
≥80 |
Neutral packing | |
|
4 |
1650*32*25mm |
0-40V700mA |
27W |
High power LED 3W white 9PCS |
4000-6500K |
1350 |
65 |
A+ |
≥80 |
Neutral packing | |
|
5 |
CDBD3-M (include 2pcs driver) |
1095*47.2*25mm |
0-25V700mA |
2*18W |
High power LED 3W white 12PCS |
4000-6500K |
1800 |
65 |
A+ |
≥80 |
Nuetral packing |
|
6 |
1280*47.2*25mm |
0-30V700mA |
2*21W |
High power LED 3W white 14PCS |
4000-4500K |
2100 |
65 |
A+ |
≥80 |
Neutral packing | |
|
7 |
1465*47.2*25mm |
0-35V700mA |
2*24W |
High power LED 3W white 16PCS |
4000-6500K |
2400 |
65 |
A+ |
≥80 |
Neutral packing | |
|
8 |
1650*47.2*25mm |
0-40V700mA |
2*27W |
High power LED 3W white 18PCS |
4000-6500K |
2700 |
65 |
A+ |
≥80 |
Neutral packing |

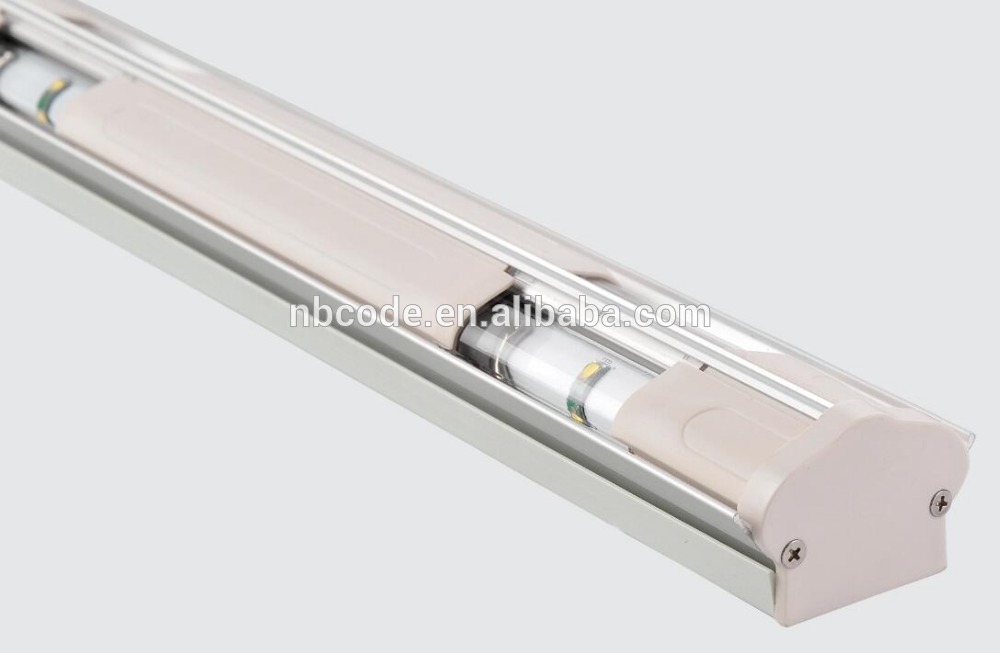

※ Detailed photo

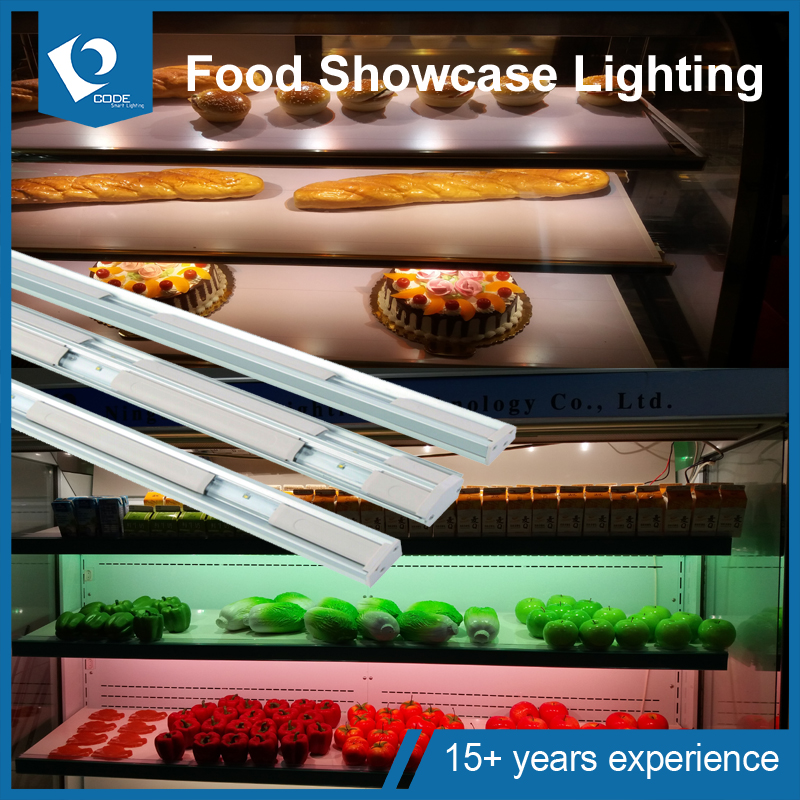

※ Application: Suitable for food showcases in public areas.
